Wireless transmitting
Max.380M
1080P FHD display
120° view angle
IR 15 meters
IP 69 rate
2//3/4 Ch video
Max.256G TF card
12-48V adaption
Multi languages

Wireless camera system with battery pack

Installing a wired camera requires you to make long-term decisions about where you will most need the camera. It also requires a few hours to mount the camera and do the wiring.
With a wireless tractor camera system and battery pack, you don’t have to make permanent decisions about placement. Just put the camera where you need it right now. If you switch machines or task, just take the camera with you, especially very useful and convenient in agriculture & construction machinery.

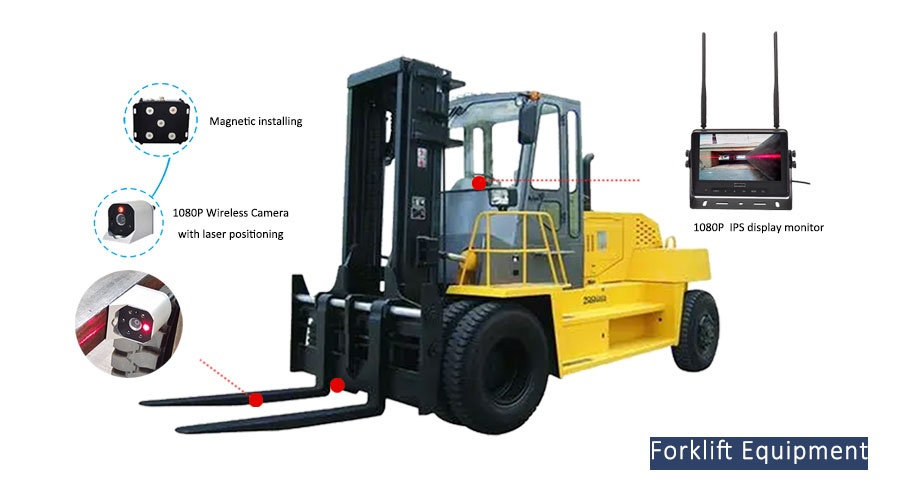

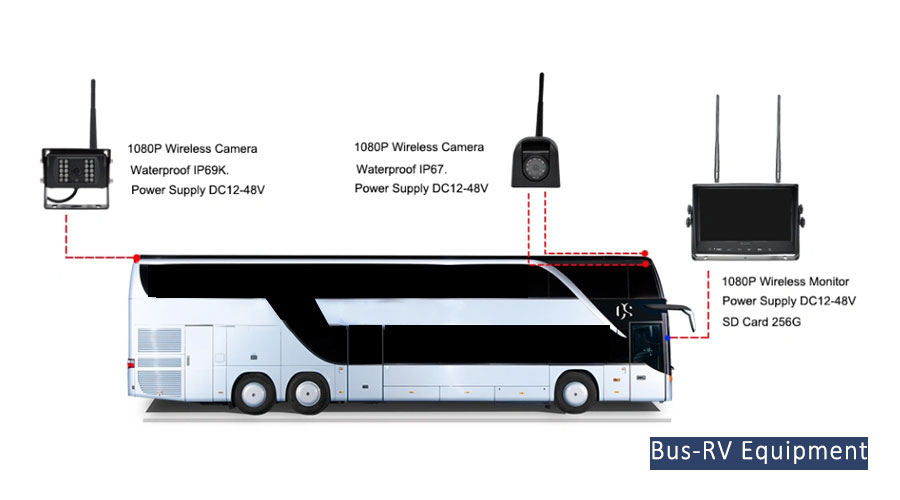

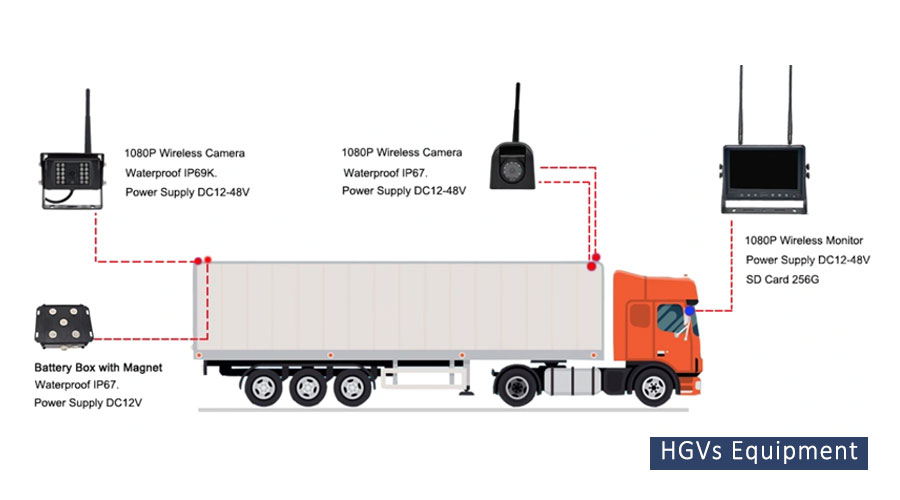

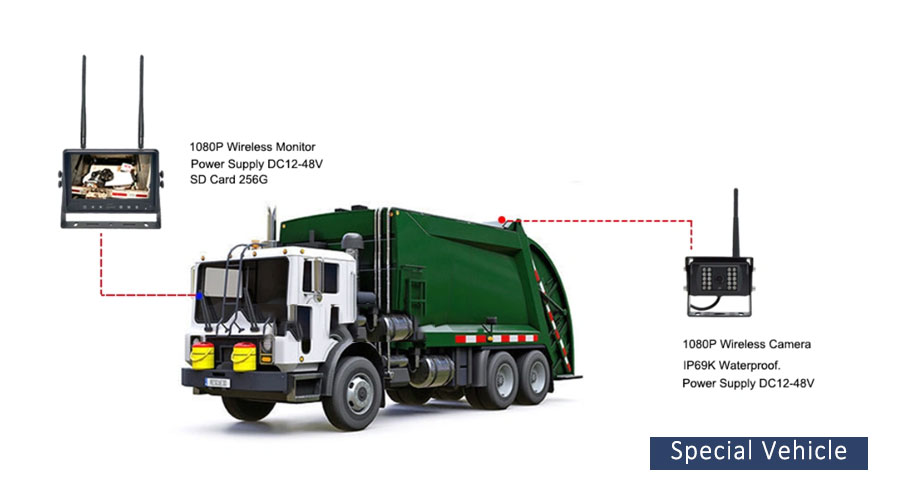

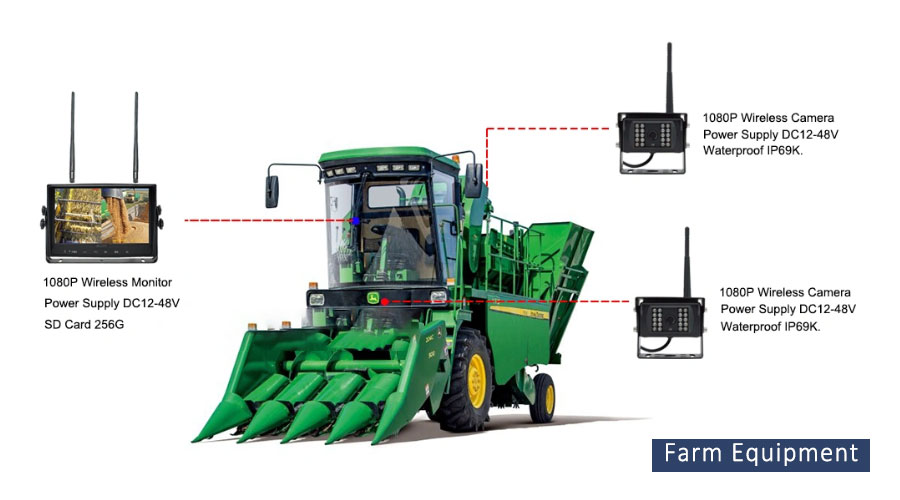

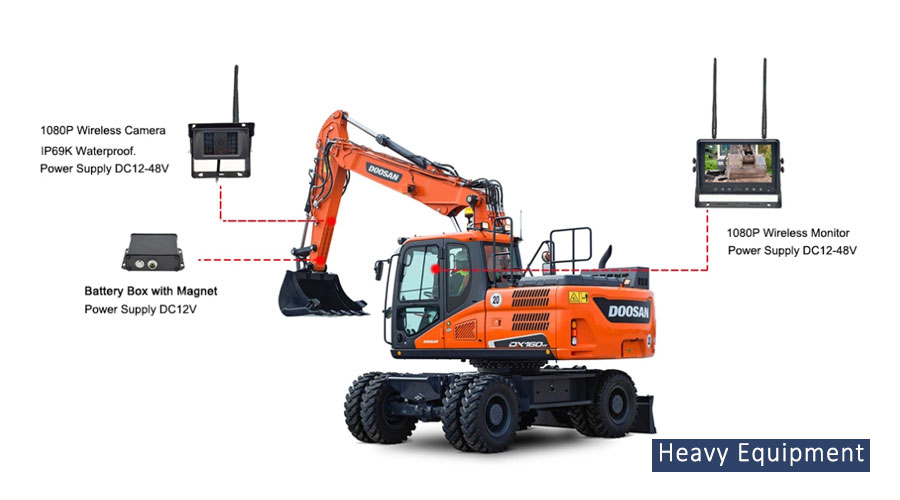

applications for Recommanded Vehicle

camera

monitor

TYPICAL Specification of
1080p wireless vehicle camera monitor system

1080P wireless camera

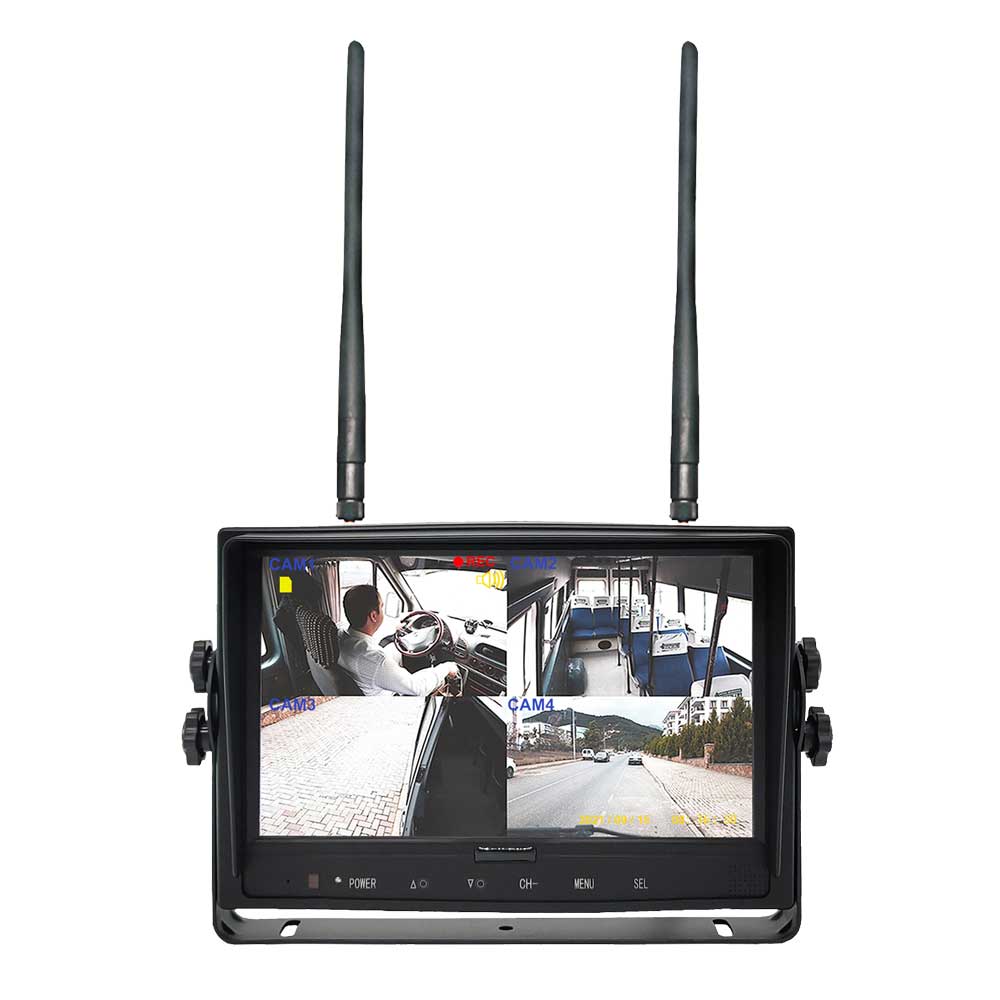

9" wireless IPS monitor
9″ wireless IPS monitor
Model VC-C Camera specificationVM-9 Monitor specification
Image Device1/2.9″ CMOSLCD size9″ IPS LCD
TV SystemPAL / NTSCResolution1024 x 3 (RGB) x 600
Array Size 1920*1080Contrast800:01:00
Sensing Area2.8um x2.8umBrightness450 cd/m2
Sync. SystemInternalViewing AngleU: 80 / D: 85,R/L: 85 Sync.
White BalanceAutoAspect Ratio16:09
Resolution1080PChannel4 CH
Minimum Illumination 0.1 Lux (day), 0 Lux (with IR)KeyTouch key
MicrophoneYesOperating Frequency2412 – 2467 MHz
Electronic ExposureUp to 510:1Transmitting Distance380 M
AGCAutoRecieving Sensitivity-85 dBm
S/N RatioBetter than 48 DbDecompression FormH.264
Communication protocolP-WIFIEmitting Frequency17 dBm
BLCAutoCommunication protocolP-WIFI
Current ConsumptionMax. 400 mA/12VModulationFSK/GFSK
Power SupplyDC 12-48 VTF CardMax. 256G
Operating frequency2400 -2483.5 MHzTime Delay200ms
Transmitting distance380MSystem FormatPAL / NTSC
Transmitting speed12MbpsPower SupplyDC 12-48 V
Decompression formH.264Power ConsumptionMax. 8W
Transmit output power17 dBmLoudspeaker1.5W/8Ω
Lensf = 2.8mmOperating Temperature-20~+70℃, RH 90%
Lens Angle120°Storage Temperature-30~+80℃, RH 90%
WaterproofIP69K
Operating Temperature -20°C~60°C, RH 90% MAX.
Storage Temperature-30°C~80°C, RH 90% MAX
